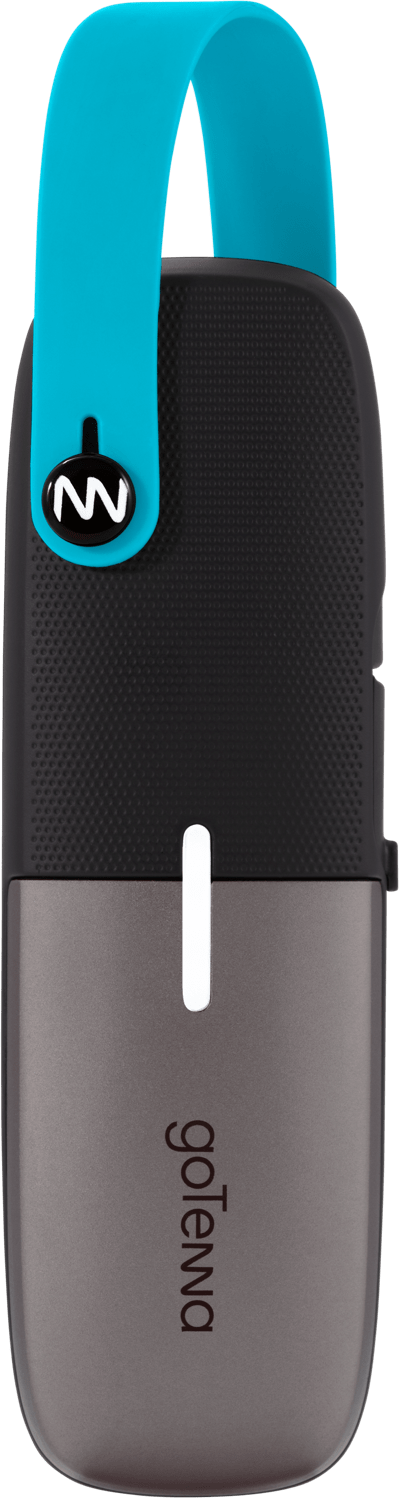

Spec Sheet for goTenna Mesh
General Specifications
Radio Dimensions HxWxD
5 x 1.25 x 0.5 in
Weight
1.7 oz
FCC ID
2ABVK80085
IC ID
21842-GTISM01
CE
Approved*
Intrinsic Safety
n/a
Battery
Battery Life (Standby)
27 Hours
Battery Life (Nominal)
24 Hours**
Battery Capacity
LiPo, 589mAh, 2.18Wh
Charge Time
3 Hours
Receiver
FCC/IC Frequency
902 - 928 MHz
CE Frequency
869.425 - 869.625 MHz
Channel Spacing
25kHz
Frequency Stability (-30°C, +60°C, +25°C Ref)
2.5ppm
Digital Sensitivity (5% BER)
-106 dBm
Transmitter
FCC/IC Frequency
902-928 MHz
CE Frequency
869.425-869.625 MHz
Channel Spacing
25kHz
Frequency Stability (-30°C, +60°C, +25°C Ref)
2.5ppm
Low Power Output
0.5 W
High Power Output
1 W
Modulation
GFSK
Additional
FCC/IC Antenna
0 dBi gain, Linear, Inverted-F
CE Antenna
0 dBi gain, Linear, Inverted-F
Mesh Networking protocol
Aspen GroveTM
Hop limit
6***
Payload size
235 Bytes Max
Bluetooth
BLE 5.0 & BLE 4.0+
USB port
Micro USB 2.0
|
General Specifications
|
FCC/IC
|
CE
|
|---|---|---|
| Radio Dimensions HxWxD | 5 x 1.25 x 0.5 in | |
| Weight | 1.7 oz | |
| FCC ID | 2ABVK80085 | n/a |
| IC ID | 21842-GTISM01 | n/a |
| CE | n/a | Approved* |
| Intrinsic Safety | n/a | |
|
Battery
|
||
| Battery Life (Standby) | 27 Hours | |
| Battery Life (Nominal) | 24 Hours** | |
| Battery Capacity | LiPo, 589mAh, 2.18Wh | |
| Charge Time | 3 Hours | |
|
Receiver
|
||
| Frequency | 902 - 928 MHz | 869.425 - 869.625 MHz |
| Channel Spacing | 25kHz | |
| Frequency Stability (-30°C, +60°C, +25°C Ref) | 2.5ppm | |
| Digital Sensitivity (5% BER) | -106 dBm | |
|
Transmitter
|
||
| Frequency | 902 - 928 MHz | 869.425 - 869.625 MHz |
| Channel Spacing | 25kHz | |
| Frequency Stability (-30°C, +60°C, +25°C Ref) | 2.5ppm | |
| Digital Sensitivity (5% BER) | -106 dBm | |
|
Transmitter
|
||
| Frequency | 902 - 928 MHz | 869.425 - 869.625 MHz |
| Channel Spacing | 25kHz | |
| Frequency Stability (-30°C, +60°C, +25°C Ref) | 2.5ppm | |
| Low Power Output | 0.5 W | |
| High Power Output | 1 W | |
| Modulation | GFSK | |
|
ENVIRONMENTAL SPECIFICATIONS
|
||
| Operating Temperature | -20 to 60 C | |
| Storage Temperature | -30 to 60 C | |
|
Additional
|
||
| Antenna | 0 dBi gain, Linear, Inverted-F | |
| Mesh Networking protocol | Aspen GroveTM | |
| Hop limit | 6*** | |
| Payload size | 235 Bytes Max | |
| Bluetooth | BLE 5.0 & BLE 4.0+ | |
| USB port | Micro USB 2.0 | |
* See: https://www.gotenna.com/pages/legal
**Depends on number of units in the network, number of hops, and how often transmission occurs
*** May require subscription
